Description

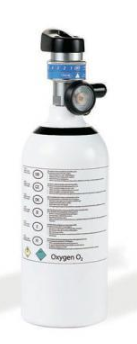

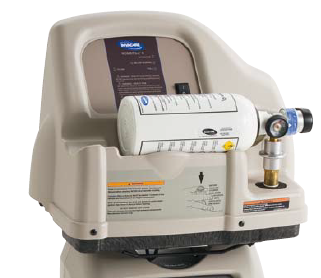

Invacare 1.0L cylinder with integrated conserver is a refillable oxygen cylinder designed for use with the Invacare Homefill Cylinder Filling station. By using the integrated conserver this oxygen cylinder can deliver either continuous or pulse flow oxygen to the patient via a nasal cannula.
Specifications
| Pulse Settings | 1,2,3,4,5 |
|---|
| Bolus size and accuracy at 20 BPM | Setting 1: 13cc +/- 3cc Setting 2: 21cc +/- 3cc Setting 3: 28cc +/- 3cc Setting 4: 35cc +/- 3cc Setting 5: 43cc +/- 4cc |
|---|
| Delivery | < 0.40seconds |
|---|
| Continuous flow setting | 2.0 +/- 0.2L/minute |
|---|
| Diameter | 11.1cm (4.4in) |
|---|
| Weight | 1.86kg (4.1lb) |
|---|
| Overall length | 27.7cm (10.9inches) |
|---|
| Volume and oxygen capacity | 1.0L and 170L |
|---|
| Fill time | 1 hour 25 minutes This is approximate and may vary depending on environmental conditions. |
|---|
