| Item | Value | |
 | Flow | Flow: 2-10 lpm |
 | Weight | Weight: 58 lb or 26.3 kg |
 | Dimensions | Dimensions: 69.85 cm High x 41.91 cm Wide x 36.83 cm Deep |
 | Power Consumption | Power Consumption: 590 watts as an average |
 | Outlet Pressure | Outlet Pressure: 20 psi |
 | Mains Voltage | Mains Voltage: 240 V |
 | Warranty | Warranty Length: 3 Years |
 | Decibel (Db) | Noise Level: 55 decibels |
 | o2 % Min | O2% Min: 2–9 LPM at 89% to 95% |
 | o2 % Max | O2% Max: 10 LPM at 87% to 93% |

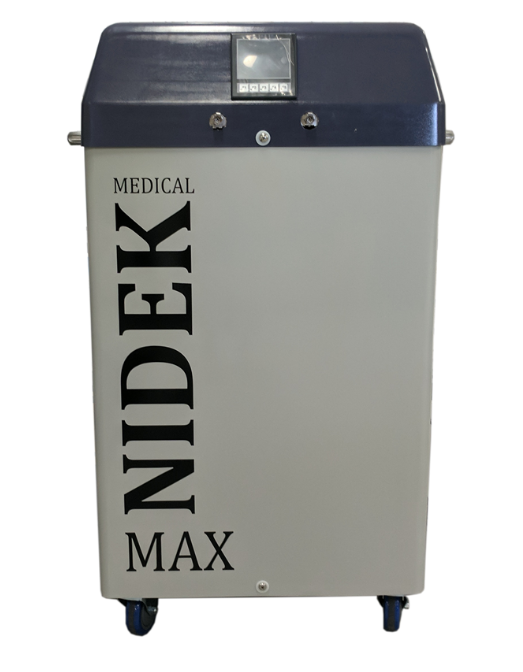

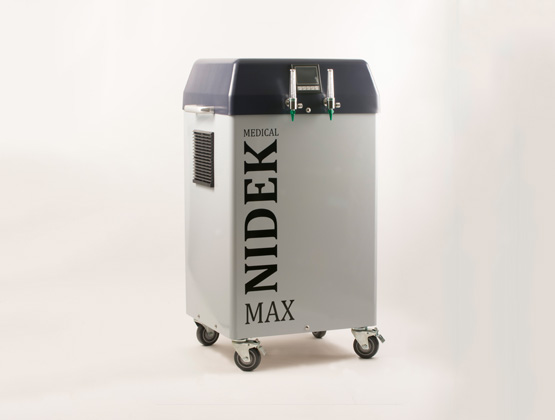

ABOUT Nidek Max 30 L Medical Oxygen Concentrator
- Description
FOR MORE INFORMATION, GIVE ONE OF OUR SPECIALIST CUSTOMER SERVICE ADVISORS A CALL ON 0345 100 0084
We are still accepting orders for this product,
however due to current shortages of these
machines, they will be on back order.

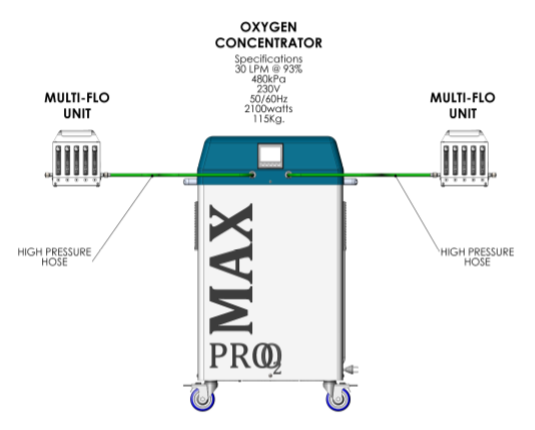

Nidek Max 30 L Medical Oxygen Concentrator has two flow output modes; the first routes the 30 Liters per Minute to 2 x 1-15 Liter per Minute Flow meters located on the front of the machine on opposite sides of the LED touch screen. This allows for two connections to be made to the front of the machine, with the option of purchasing additional flow meter assemblies based on how many users you anticipate needing to connect to one machine.

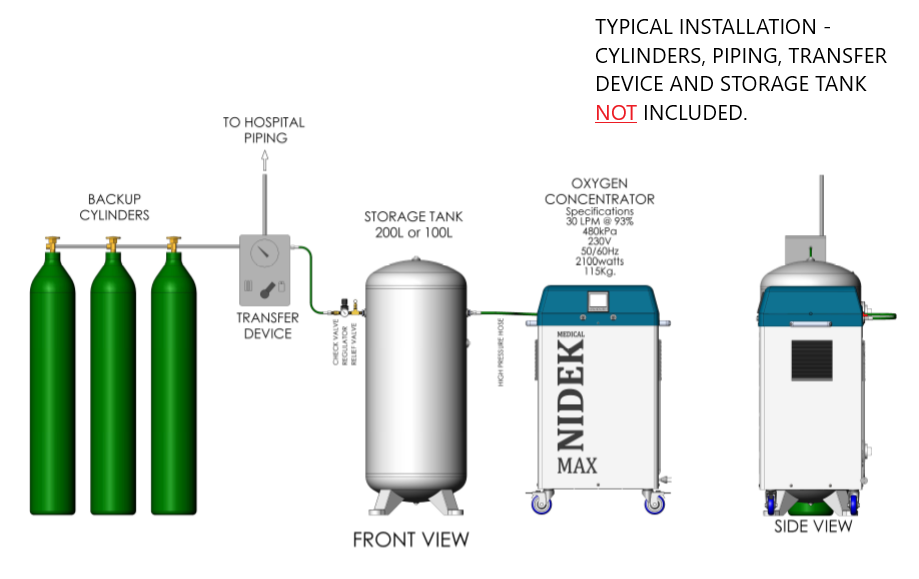

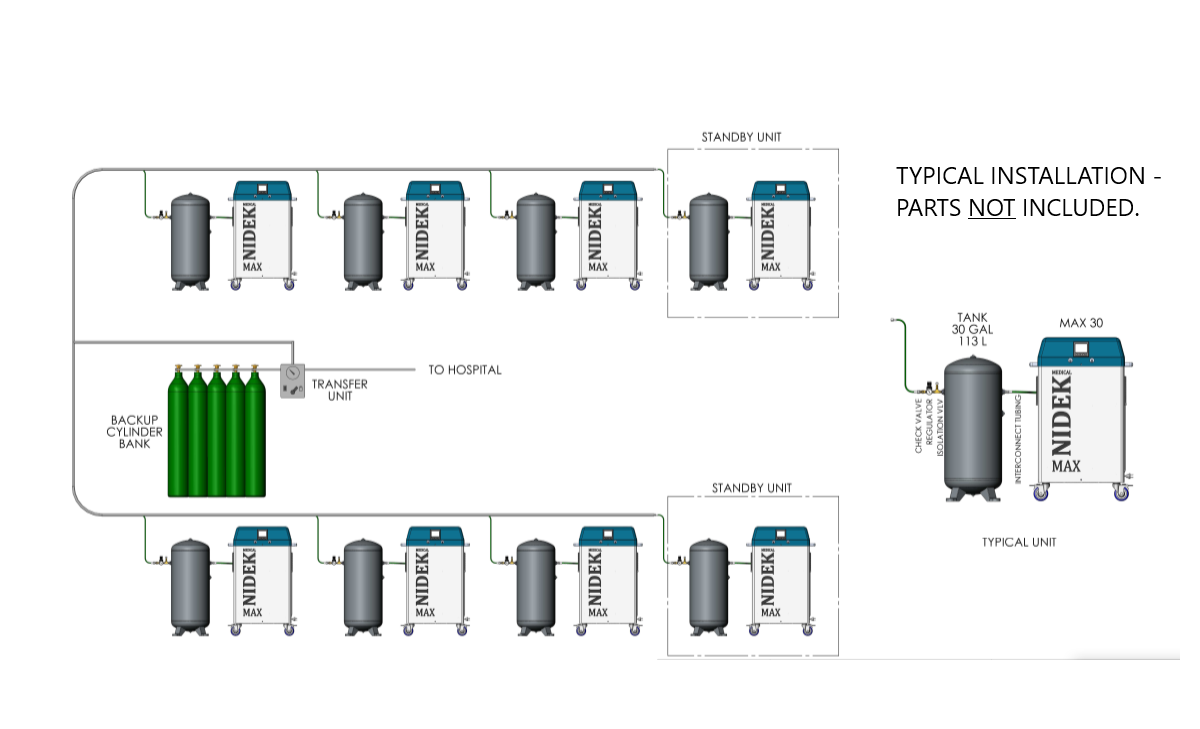

The other flow output is to attach the 30 Liters directly to a central oxygen line, which is typical in most clinics and hospitals. The 30 liters is provided to this line, which runs to each room and allows that room to set their own independent based on what’s required at that moment.
SPECIFICATIONS
Flowrate - 2 to 30 LPM
Average Power Consumption - 12 Amps
Oxygen Concentration - 93% (+/-3%)
Outlet Pressure - 50 PSIG (3.4 BAR)
Weight - 90kg
Dimensions - 61 x 51 x 116 cm
